| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Certification: | ISO 9001:2008 |
| Minimum Order Quantity: | 1pc |
| Price: | $10,000.00/sets |
| Packaging Details: | TPAD Auto Dosing Device for wastewater treatment <br>Wooden or pallet |
| Supply Ability: | 50 Set/Sets per Month |
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Food Shop, Construction Works , Food & Beverage Shops |
|---|---|---|---|
| Showroom Location: | Indonesia, Pakistan, Argentina, Chile | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Mixer |
| Warranty: | 1 Year, 12 Months | Productivity: | 5000L/Hour |
| Product Name: | Sewage Treatment | Type: | Automatic |
| Material: | Stainless Steel | Capacity: | 1000L |
| Voltage: | 220V / 380V | Power: | 1.5KW |
| Usage: | Solid-liquid Separation | Function: | Flocculation |
| After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service | Local Service Location: | Indonesia, Pakistan, India, Russia, Thailand, Australia, Argentina, Chile, Bangladesh |
| After-sales Service Provided: | Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support | Port: | Shanghai |
Dosing Device Introduction

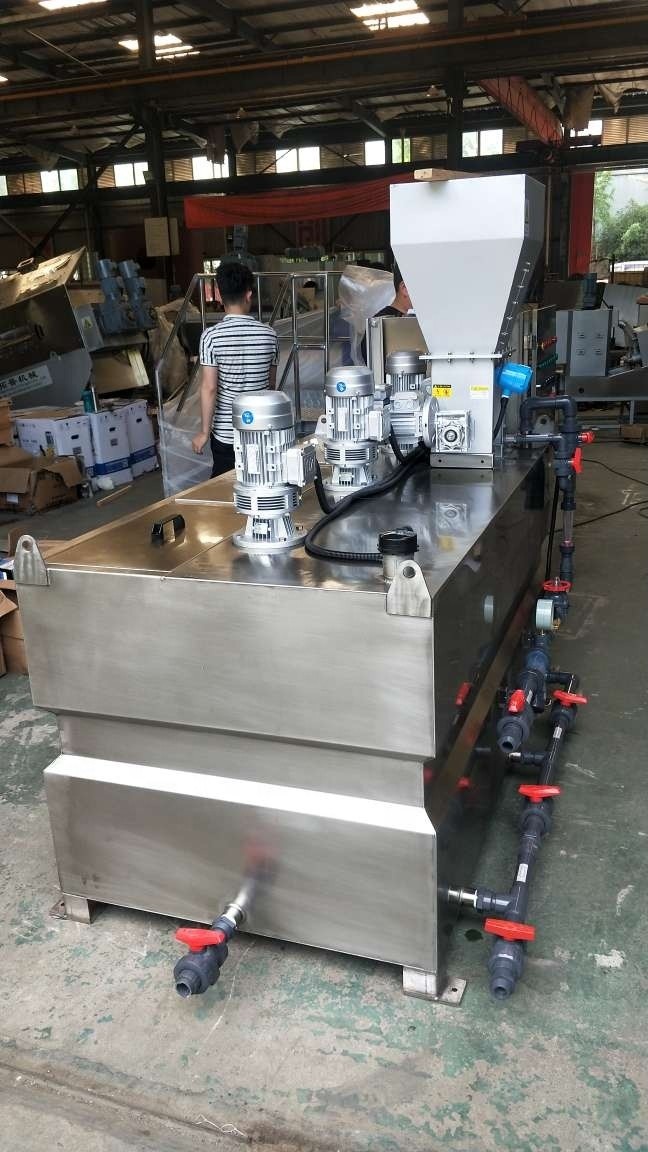

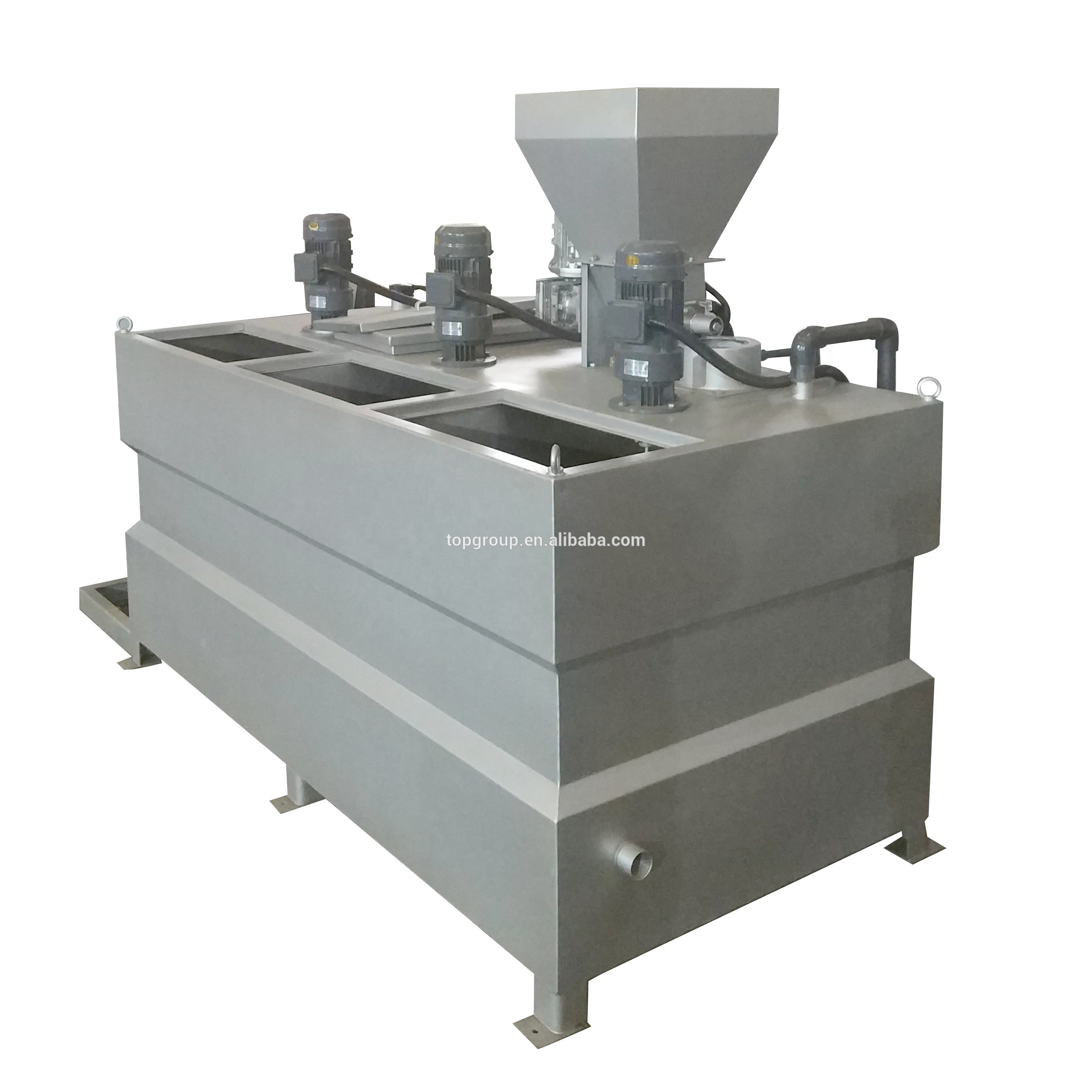

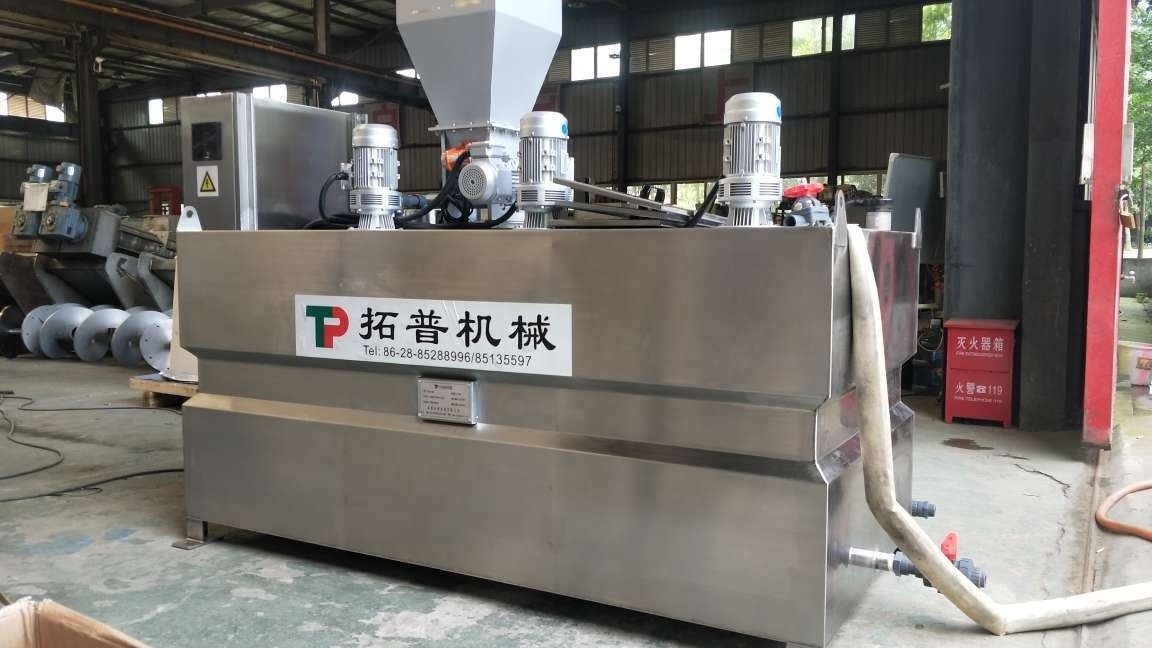

Auto-Dosing Device for wastewater is installed before Spiral Type Sludge Dewatering Equipment. It is used in PAM (polyacrylamide) dosing dissolving mixing and solution dosing. It consists of triple cavity case, dry powder addition system, liquid mixing system, control system, liquid injection system.
Dosing Device working principle
This device is flocculating agent automatic continuous preparation and addition system. Dry powder flocculating agent from spiral propeller to instant device premix with clean water, the wet agentia goes into mixing tank for mixing and diluting,prepare it with the concentration requirement; if it is a liquid flocculant, it is directly injected into the preparation tank by the screw pump. If it is a liquid flocculant agent, it is directly injected into the preparation tank by the screw pump. In the preparation process,The water inflow must be relatively stable under the observation of the flowmeter, to ensure that the concentration is no change in whole working process.
Dosing Device Main Features
1.Automatic batching, dissolving, with one integration design, fully automatic running.
2.Quantitative medicine dispensing device measured accurately,with stepless transmission drive,It is convenient to adjust the feeding amount,The concentration range of the dispensing medicine is large.
3.With the functions of liquid level detection, flow control, auxiliary vibration feeding and so on,high level automation.
Dosing Device Process flowchart
Dosing Dosing Device Specification
Clients visit
Dosing Device Related products
Screening---TPR Micro-screen Rotating Drum Filter
Filtering---TPSC Self-Cleaning Filter
Flocculation---TPAD Auto-dosing Device
Sludge Dewatering---TP Volute Screw Sludge Dewatering Machine/
TPLW Horizontal Decanter Centrifuge
About us
Top machinery, founded in 2002, specialized manufacture wastewater treatment equipment and sludge dewatering machine, like screw type sludge dewatering machine, decanter centrifuge, brushing/scraping self-cleaning filter, automatic back-flushing filter, Bernoulli filter, electrocoagulation, inward/outward water micro filter, bar screen, etc. With our consistent effort, high quality, competitive price and good after-service, our machines are supplied to more than 30 countries with very good feedback.
