| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Certification: | ISO9001:2008 |
| Minimum Order Quantity: | 1pc |
| Price: | $5,299.00/sets 1-4 sets |
| Packaging Details: | Plastic streching film or wooden-cases package High quality screw sludge dehydrator For Wastewater Treatment |
| Supply Ability: | 50 Set/Sets per Month |
| Condition: | New | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Other, Advertising Company |
|---|---|---|---|
| Showroom Location: | Canada, France, Philippines, Indonesia, India, Mexico, Russia, Thailand, Morocco, Argentina, Chile, UAE, Colombia, Sri Lanka, Romania, Bangladesh, South Africa, Ukraine, Malaysia, Australia | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2022 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Motor, Screw Shaft, Rings |
| Material: | Steel, Stainless Steel 304/316 | Weight: | 1340KG |
| Size: | 7.7CBM | Power: | 2.05KW |
| Warranty: | 1 Year | Productivity: | 100L/Hour |
| Weight (KG): | 1000 Kg | After-sales Service Provided: | Video Technical Support |
| Use: | Wastewater Treatment | Type: | Straight |
| Function: | Solid-liquid Separation | Application: | Leather/Municipal Water And Industrial Waste Treatment |
| Outlet Water Content: | 75%-85% | Name: | Screw Press Sludge Dewatering Machine For Oil Water Treatment |
| Port: | Shanghai |

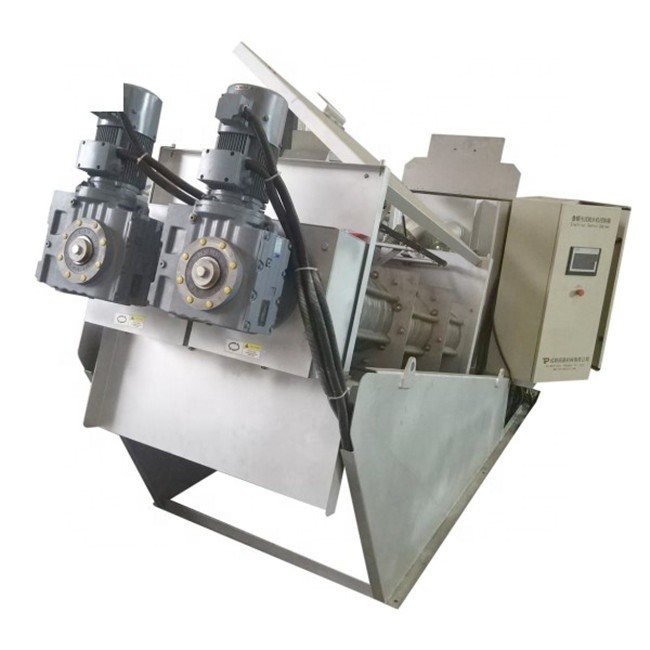

TPDL Sludge Dewatering Screw Press for Industrial Waste Water Treatment
Product introductions:
Volute Sludge Dewatering Machine( Hereinafter referred as TPDL ) belongs to the screw press, it's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction. TPDL using screw and the moving rings to clean itself as clog-free structure, and controlled by the PLC automatically, it's a new technology that can replace the traditional filter press like belt press and frame press, the screw speed is very low, so it cost low power and water consumption in contrast to the centrifuge, it is a cutting edge sludge dewatering machine.
Features:
1. Low operation cost: below 40% of belt press and 20% of centrifuge.
2. Power-saving: less than 5% of centrifuge
3. Water-saving: less than 0.1% of belt filter press.
4. Saving drugs: saving around 60%.
5. Compact: saving more than 60% of the investment for dehydration room.
6. Non-clogging: processing the fats & oils and fiber sludge perfectly
Application:
•Municipal & Domestic
•Tannery•Paper & Pulp•Dyeing & Printing
•Food & Beverage•Dairy•Agricultural•Slaughter & Farming
•Pharmaceutical & Petrochemical
Working principle:
The wastewater is pushed into the dewatering machine.The sludge will move to the sludge cake outlet under the pressure of the helical aixs blades. Becuse the gap among the helical blades become narrower,so the sludge bear heavier pressure and began to dewatering under the pressure. The water comes out from the space between fixed and moving plates.
Technical parameters
Process flowchart

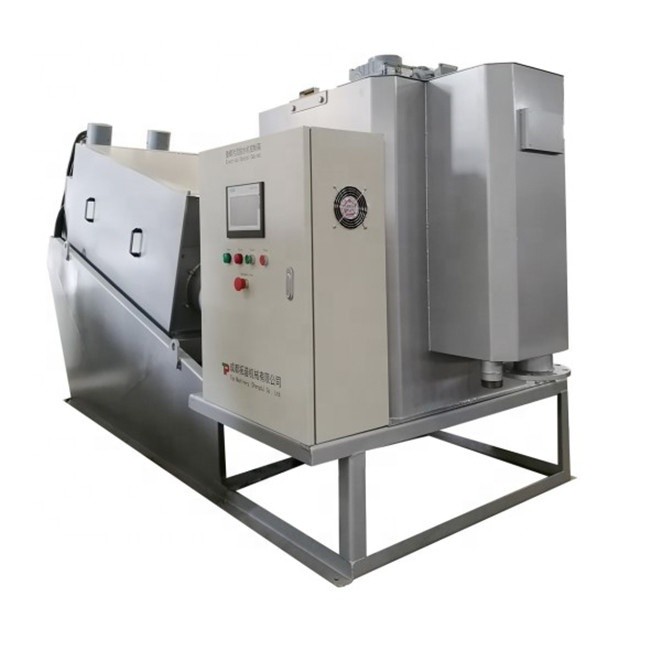

Electric cabinet
Q: Where is your factory?
A:Chengdu city,Sichuan province, China
Q:Can you accept OEM?
A:Yes.We could do OEM for you.
Q: Do you have a certification?
A: Yes. we have ISO / CE certificate and certificate of patent
Q: How about the delivery tme?
A: Usually 7-15 days after prepayment is confirmed.
Q:Do you have a design team?
A:Yes,we have.Providing outline drawing,electric drawing and others.
Q:Can you send me a sample?
A: Yes.1-3 days for delivery
Q. :What is your payment?
A: T/T,T/C,Western Union,Paypal.
