| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Certification: | ISO 9001:2008 |
| Minimum Order Quantity: | 1pc |
| Price: | $4,999.00/sets >=1 sets |
| Packaging Details: | sludge screw press dehydrator with auto dosing system <br>wooden box package |
| Supply Ability: | 10 Set/Sets per Month sludge screw press dehydrator with auto dosing system |
| Condition: | New | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Farms, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 6 Months | Core Components: | Gear, Motor, PLC |
| Material: | Wooden Boxes | Weight: | 100kg |
| Power: | 0.36 | Warranty: | 1 Year |
| Productivity: | 500L/Hour | Weight (KG): | 100 Kg |
| Name: | Sludge Screw Press Dehydrator With Auto Dosing System | Material: | Stainless Steel |
| OEM: | Yes | Packing: | Wooden Box |
| MOQ: | 1 PC | Usage: | Water Treatment |
| Function: | Solid-liquid Separation | Application: | Leather/Municipal Water |
| Keywords: | Udge Screw Press Dehydrator | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Egypt, Turkey, Italy, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, South Korea, Chile, UAE, Sri Lanka, Bangladesh, South Africa, Ukraine, Uzbekistan | After-sales Service Provided: | Video Technical Support, Online Support |
| Port: | Tianjin/Shanghai/Shenzhen |
One of leading full service treatment equipment for water and wastewater industries in China, heading to all over the world.

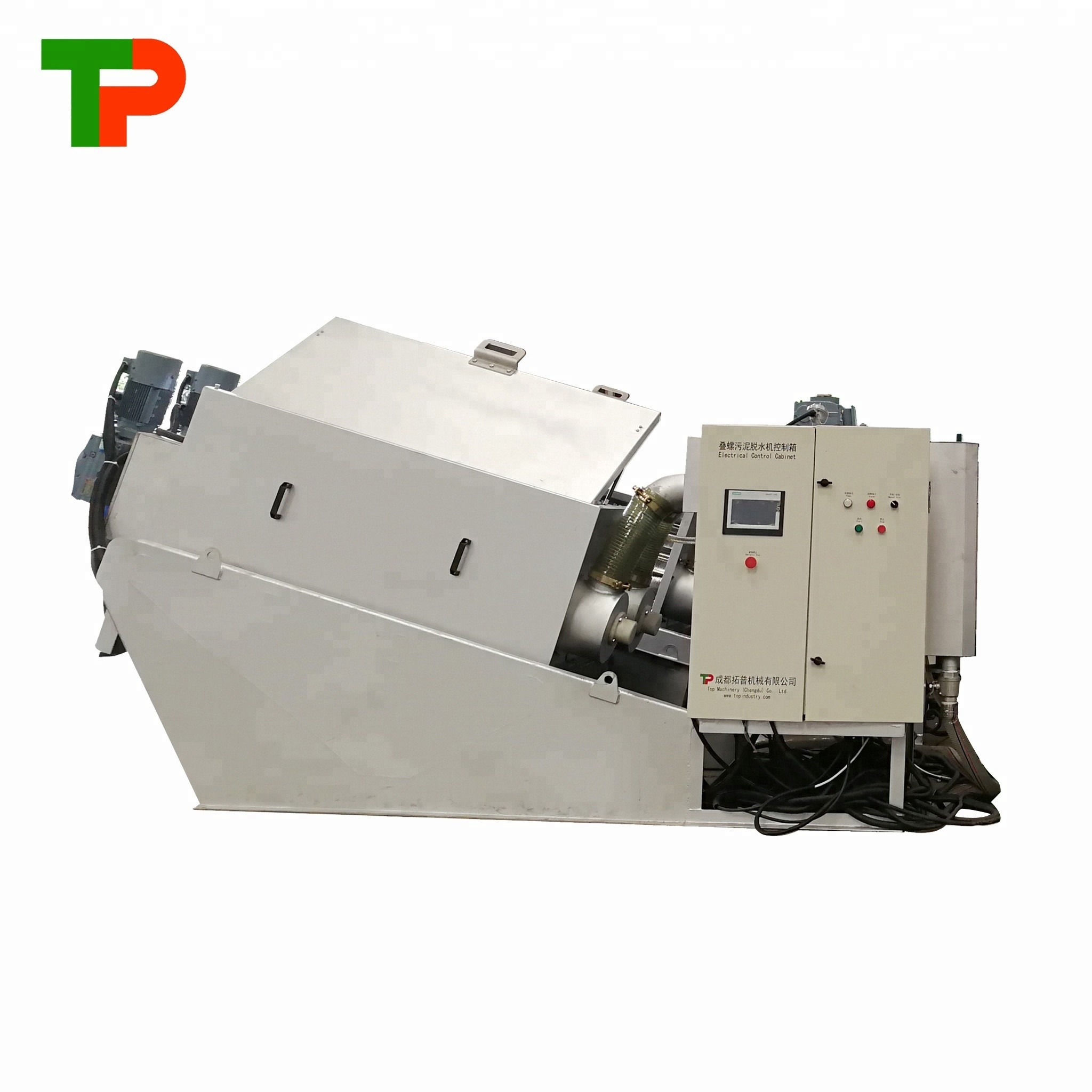

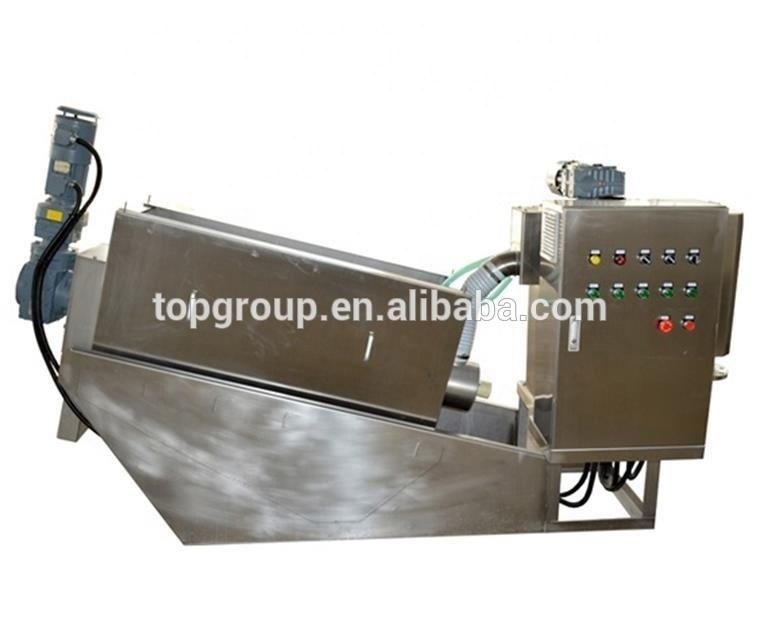

TPDL Volute Type Sludge Dewatering Units Machine
Product Description of volute screw press sludge dewatering machine
Volute Sludge Dewatering Machine( Hereinafter referred as TPDL ) belongs to the screw press, it's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction. TPDLusing screw and the moving rings to clean itself as clog-free structure, and controlled by the PLC automatically, it's a new technology that can replace the traditional filter press like belt press and frame press, the screw speed is very low, so it cost low power and water consumption in contrast to the centrifuge, it is a cutting edge sludge dewatering machine.
Working Principle of volute screw press slugde dewatering machine:
The wastewater is pushed into the dewatering machine.The sludge will move to the sludge cake outlet under the pressure of the helical aixs blades. Becuse the gap among the helical blades become narrower,so the sludge bear heavier pressure and began to dewatering under the pressure. The water comes out from the space between fixed and moving plates.
Flow chart of volute screw press sludge dewatering machine
Advantage of volute screw press sludge dewatering machine:
1) Not clog: Processing the fats & oil and fiber sludge perfectly.

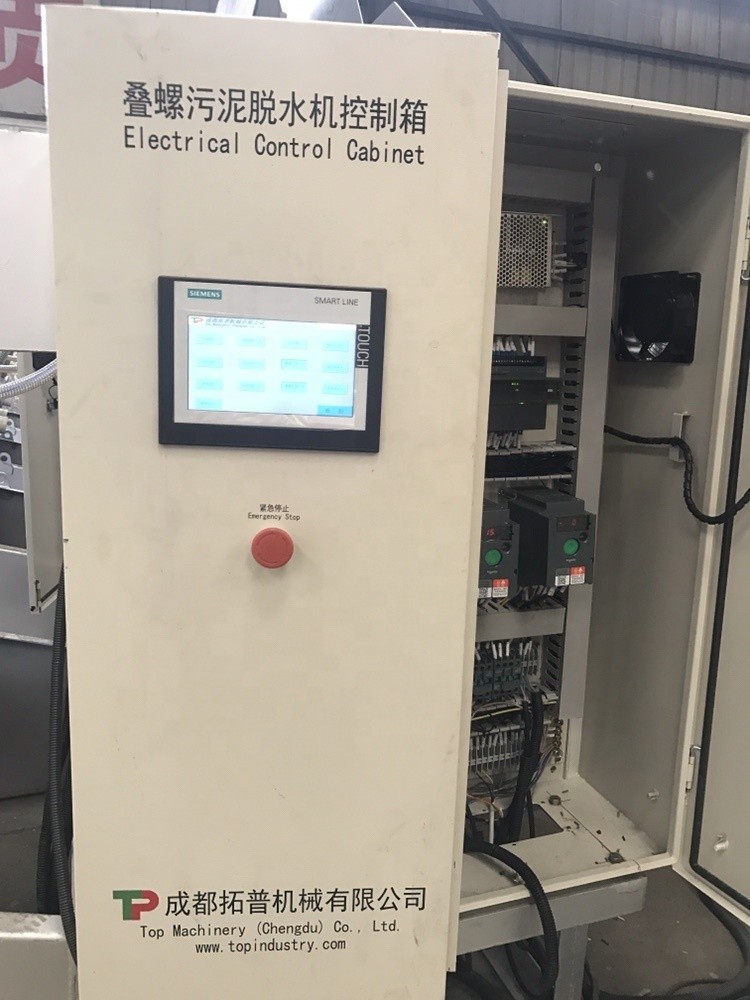

2) Full automatic: Combining with the auto control system, the machine can operate 24 hours unmanned.
3) Saving Running cost: Water-saving, Power-saving, Drugs-saving etc..
4) No secondary pollution: The screw shaft rotational speed is 2-4 r/min, so there is no noise, vibration and smell.
5) Lightweight and durable: Mechanical dewatering extrusion without rollers and other large body. Stainless steel ensure long service time.
6) Decrease project investment: Integrating with auto-control cabinet, sludge thickening & dewatering body liquid collection tank,
Technical parameters:
| Model | DS (KG/H) | Motor Power (KW) |
| TPDL131 | 5-10 | 0.36 |
| TPDL132 | 10-20 | 0.54 |
| TPDL251 | 15-30 | 0.92 |
| TPDL252 | 30-60 | 1.47 |
| TPDL301 | 30-60 | 1.3 |
| TPDL302 | 60-120 | 2.05 |
| TPDL303 | 90-180 | 3 |
Please check below contact detail to get more!
More detail of volute screw press sludge dewatering machine
1) Municipal sewage petro-refining
2) Leather making
3) Printing and dyeing paper
4) Coating and mining
5) Bio-pharmaceutical
6) Steel
7) Food/beverage production
8) Agricultural/fishery industry
9) Other....
