| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Minimum Order Quantity: | 1pc |
| Price: | $1,000.00/pieces >=1 pieces |
| Packaging Details: | WOODEN BOS OR AS CUSTUMER REQUESTED |
| Supply Ability: | 20 Set/Sets per Day |
| Condition: | New | Applicable Industries: | Farms, Aquaculture, Fish Farming |
|---|---|---|---|
| Showroom Location: | Italy, Thailand, Australia | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Pump, Gear, Engine, Motor |
| Material: | PP | Size: | 1120*720*745mm |
| Warranty: | 1 Year | Productivity: | 20000L/Hour |

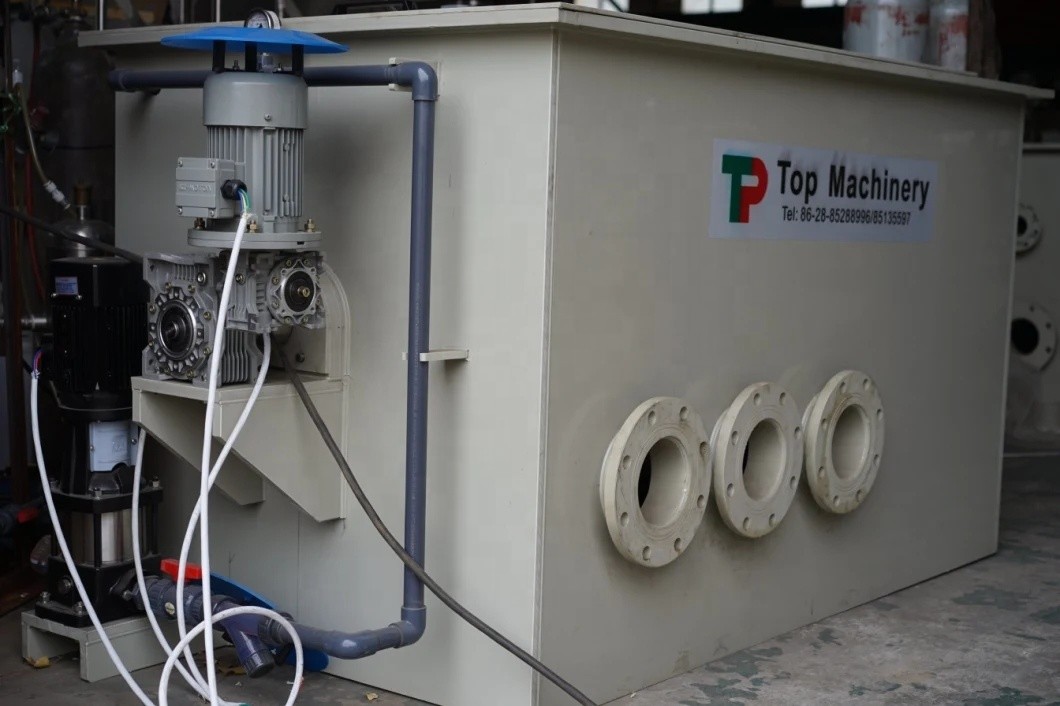

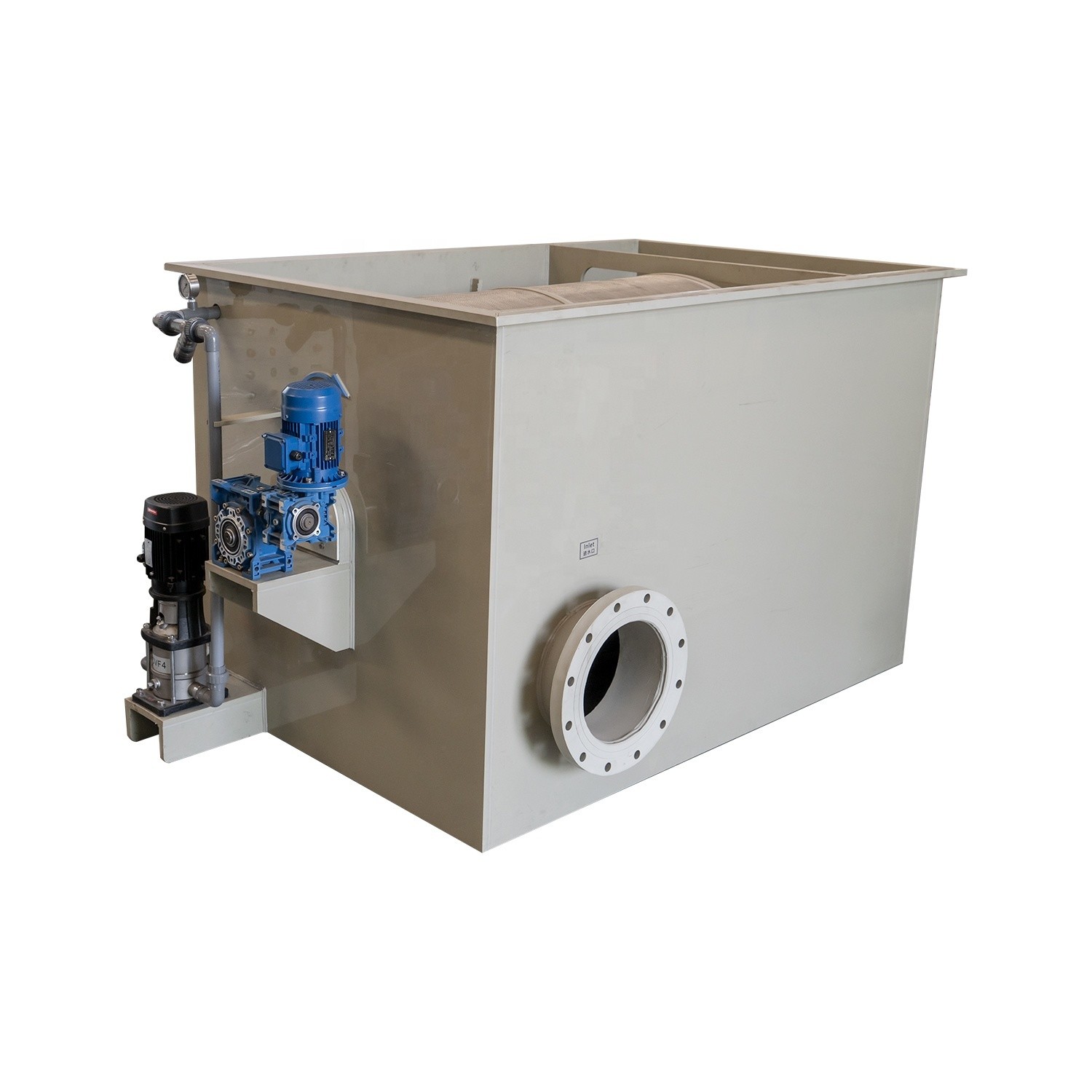

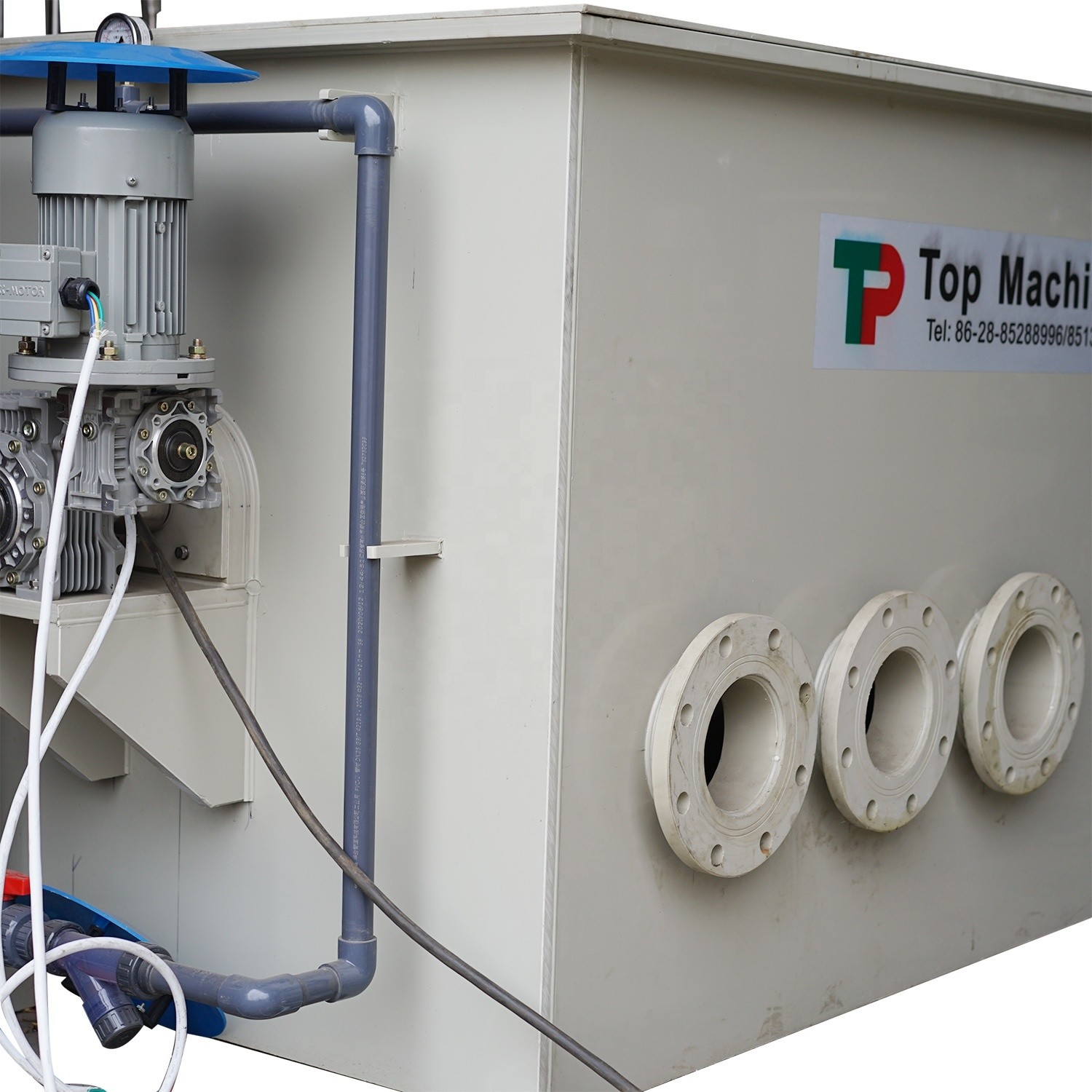

| Weight (KG): | 200 Kg | Product Name: | Fish Farm Rotating Drum Filter |

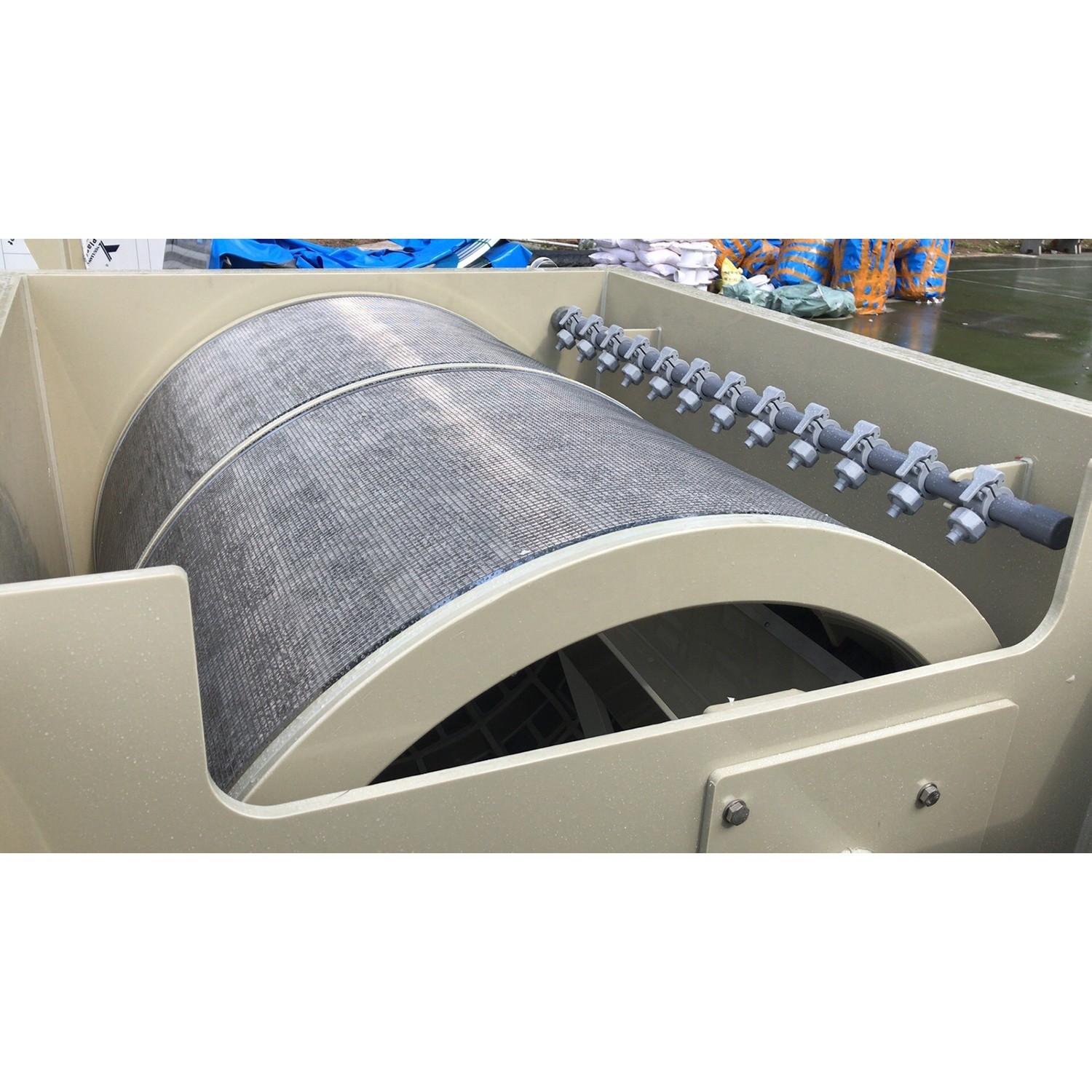

| Flow Rate(m³/h): | 20 | Screen Material: | SS316 |
| Shell Material: | PP | Motor Power (kw): | 0.55 |

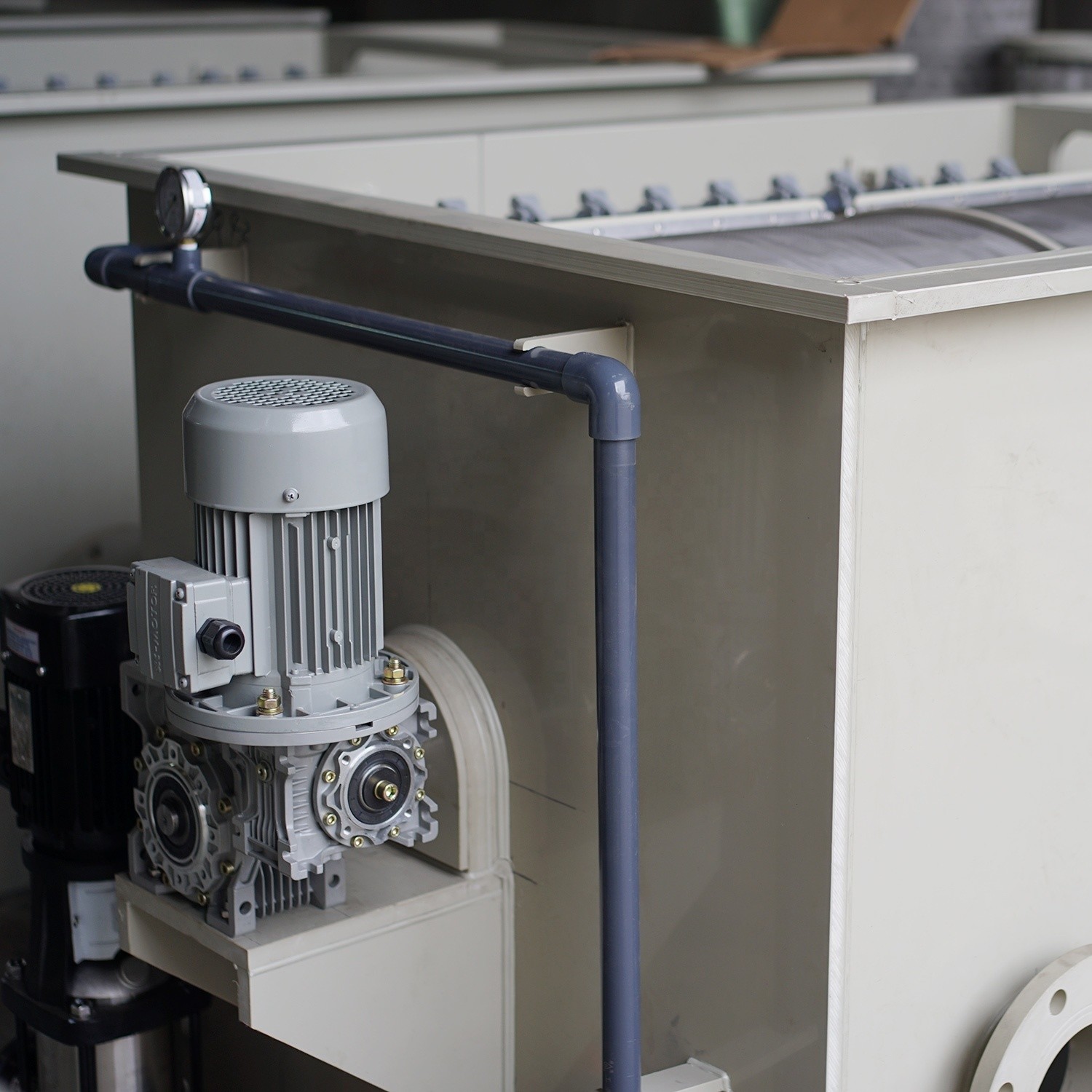

| Gear Motor Power (kw): | 0.18 | Total Power (kw): | 0.73 |
| Slot Size(micron): | 75 | Inlet/Outlet Diameter (mm): | 110/110(customized) |
| Dimension(mm): | 1120*720*745 | Port: | Shanghai |
Model | Flowrate (m³/h) | Size（mm） | Drum D/L (mm) | Pump (kw) | Motor (kw) |
TPA-20 | 20 | 1120*720*745 | 350/400 | 0.55 | 0.18 |
TPA-30 | 30 | 1075*915*845 | 500/500 | 0.75 | 0.18 |
TPA-60 | 60 | 1335*1115*985 | 700/734 | 0.75 | 0.37 |
TPA-100 | 100 | 1740*1215*1085 | 912/900 | 1 | 0.55 |
TPA-150 | 150 | 2220*1365*1195 | 1030/1290 | 1.1 | 0.75 |
TPK-200 | 200 | 1852*1512*1670 | 1300/1342 | 1 | 1.1 |
TPK-300 | 300 | 2255*1780*1780 | 1500/1750 | 1 | 1.1 |
TPK-400 | 400 | 2805*1780*1780 | 1500/2300 | 1 | 1.5 |
TPK-500 | 500 | 3405*1780*1780 | 1500/2900 | 1.1 | 1.5 |
