| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Certification: | Certification |
| Minimum Order Quantity: | 1pc |
| Price: | $8,000.00/sets >=1 sets |
| Packaging Details: | Container |
| Condition: | New | Applicable Industries: | Food & Beverage Factory, Energy & Mining, Paper Making |
|---|---|---|---|
| Showroom Location: | Indonesia, Mexico, Russia, Spain, Chile, UAE, Malaysia, Australia | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | Gear |
| Weight: | 1000KG | Power: | 0.55 |
| Warranty: | 1 Year | Productivity: | 10000L/Hour |
| Weight (KG): | 5000 Kg | Function: | Solid Liquid Separation/water Treatment |
| Material: | SS304 | SS Remove: | >90% |
| Model: | TPZF | Capacity: | 5-10M3/H |
| Keywords: | Dissolved Air Flotation | Application: | Application |
| After Warranty Service: | Video Technical Support | After-sales Service Provided: | Online Support |

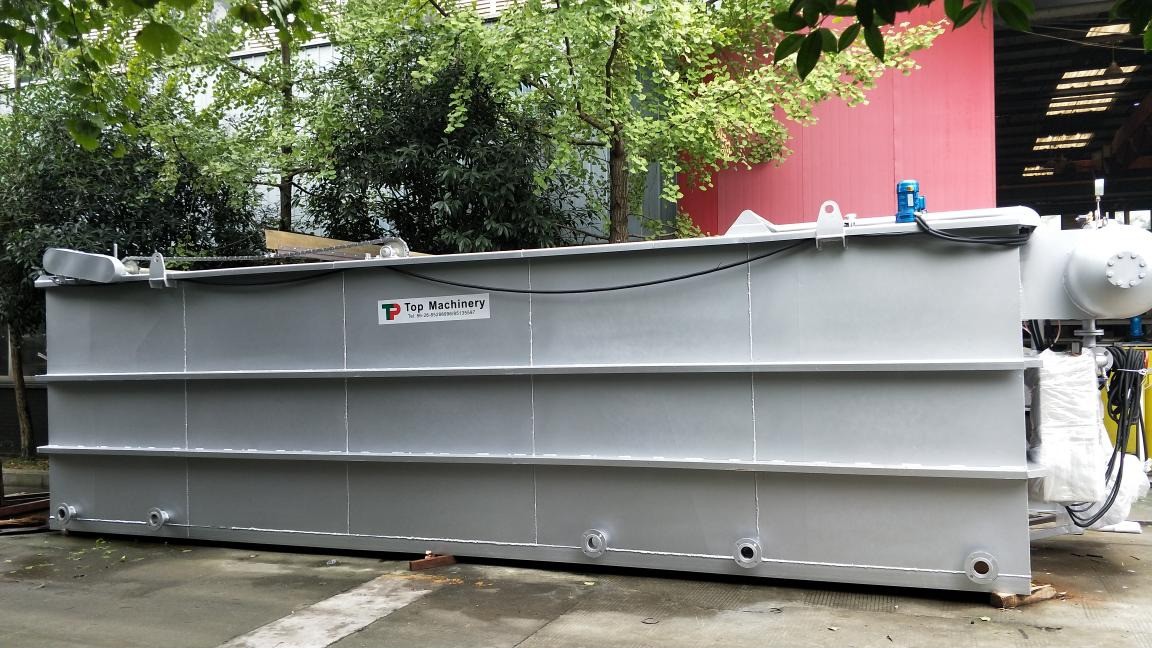

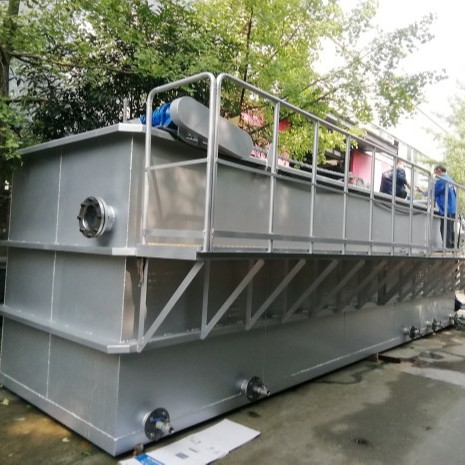

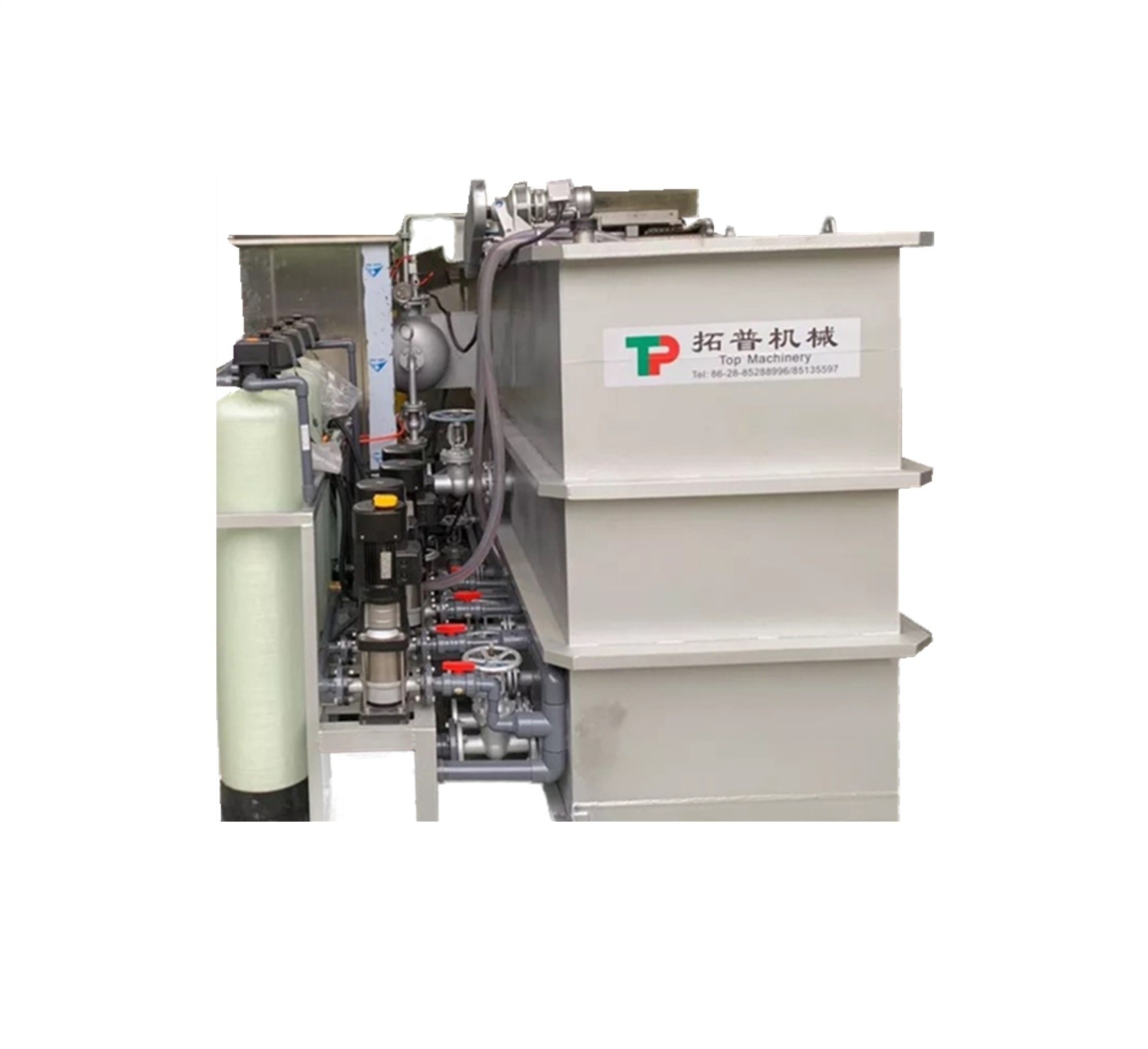

TPZF combined air flotation Machine consists of air floatation tank, dissolved air system, dissolved air return pipeline, dissolved air water release device, scraping device (combined, driving and chain plate according to user needs) and electric control cabinet. In the water supply and drainage treatment process, solid and liquid separation technology and machine are one of the key projects. Air flotation is one of the most effective methods for the removal of tiny suspended particles with a specific gravity close to that of water.
1) Small occucaption, low power consumption, convenient operation and simple management;
2) The dissolved air has high efficiency and stable treatment effect, the machine, electricity and instrument are realized in integrated control.
3) The device adopts TPZF type dissolved air system. It has a ingenious structure, and the efficiency of dissolved air can reach over 90%. It has numbers of patented technologies, and has excellent anti-blocking capability that other dissolved air devices do not have.
4) Also, the device adopts a new dissolved air releaser, which has high air releasing perfection and the average particle size of microbubbles is only 15~30 microns
5) The device adopts chain plate scraper, which is stable and reliable in operation and high in scraping efficiency..
Name: separation tank,clean water tank
Brand: TOP
Original: CHINA
Name: dissolved air system
Brand: TOP
Original: CHINA
Horizontal, non-filled, non-blocking, fully automatic dissolved gas cylinder, internal jet group, liquid level control system, safety system, air compressor
Name: Dosing system
Brand: TOP
Original: CHINA
Name: filtering system
Brand: TOP
Original: CHINA
