| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Certification: | ISO9001:2008 |
| Minimum Order Quantity: | 1pc |
| Price: | $5,699.00/sets 1-4 sets |
| Packaging Details: | Wooden Case, or as customers request.<br>TPZF Textile ETP/STP/WWTP Dissolved Air Flotation |
| Supply Ability: | 20 Set/Sets per Month |
| Condition: | New | Applicable Industries: | Hotels, Manufacturing Plant, Food & Beverage Factory, Construction Works , Energy & Mining |
|---|---|---|---|
| Showroom Location: | Indonesia, India, Bangladesh | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 6 Months | Core Components: | Gear, Motor, PLC |
| Material: | Standard Export Package, CS, SS304,etc. | Power: | 2.02 |
| Warranty: | 1 Year, 1 Year | Productivity: | 500L/Hour |
| Weight (KG): | 100 Kg | Product Name: | TPZF Combined Air Flotation Machine |
| Supporting Equipment: | Auto Dosing Equipment, Sludge Dewatering Machine, Sludge Pump | Usage: | Wastewater Treatment, Sewage Sludge Treatment, Effluent Treatment |
| Function: | Solid/grease Separation | DS Capacity: | 1-200m3/h/set |
| Application: | Textile And Dyeing, Paper Mill, Municipal, Dairy Plant, Food, Etc. | Voltage: | 380V /Customized |
| After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service | Local Service Location: | Canada, Viet Nam, Brazil, Pakistan, India, Romania |
| After-sales Service Provided: | Video Technical Support, Field Installation, Commissioning And Training, Free Spare Parts, Online Support | Port: | China Port, Or As Customers Request. |

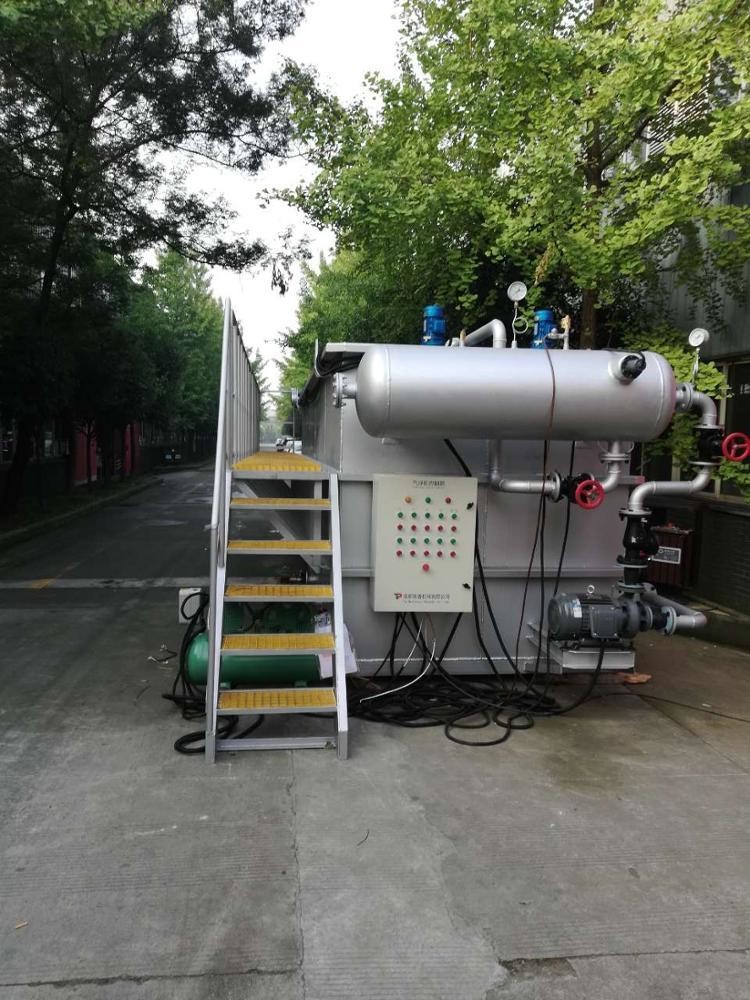

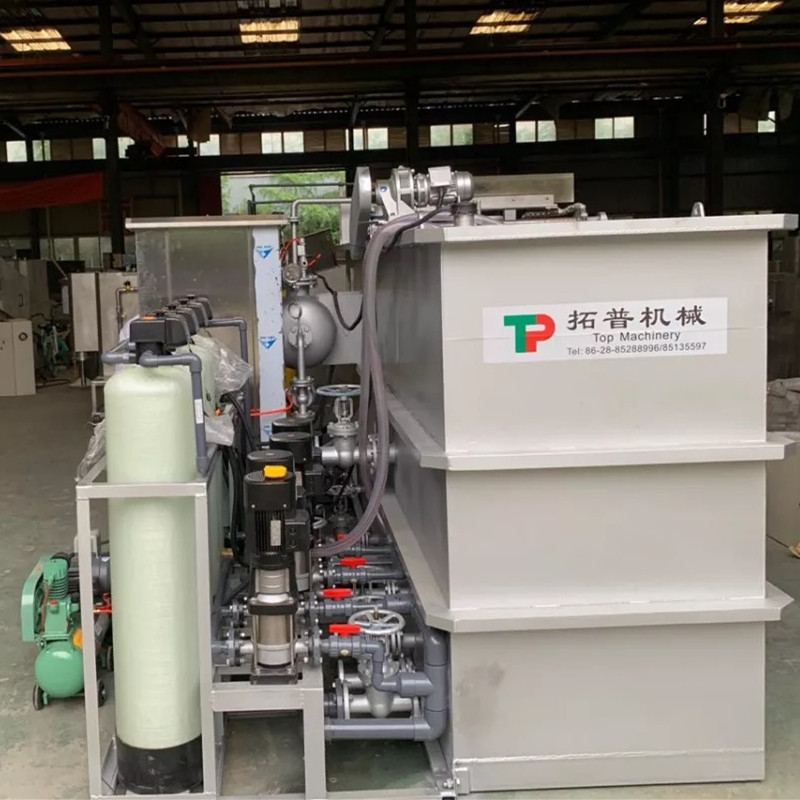

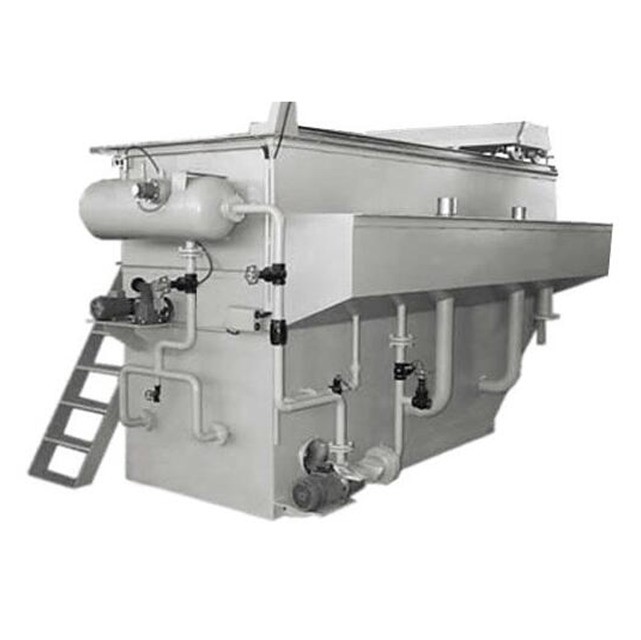

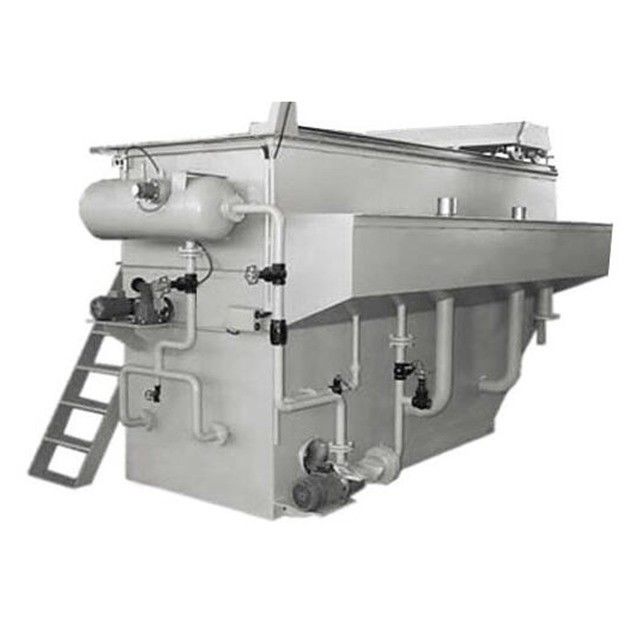

TPZF Combined air flotation machine

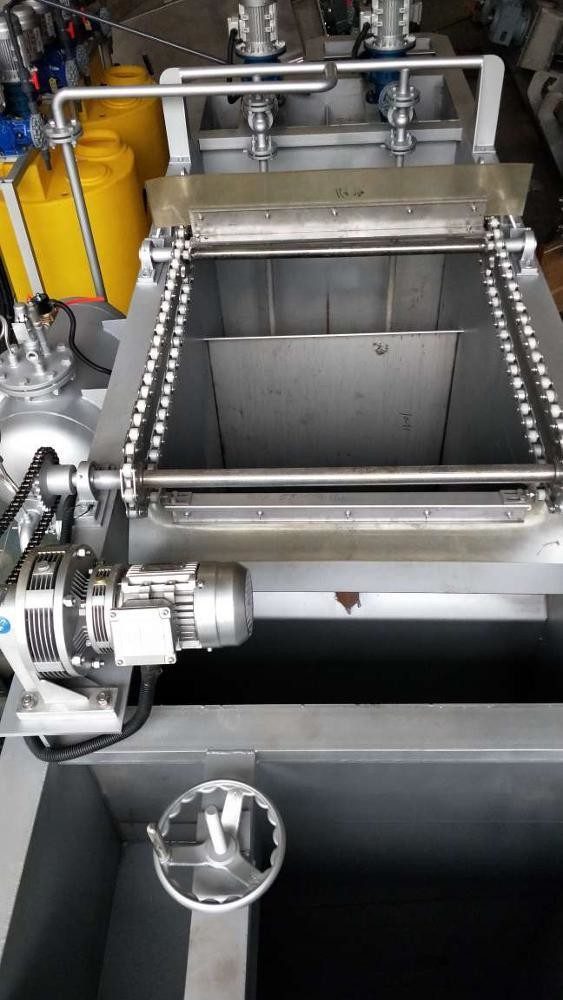

TPZF combined air flotation Machine consists of air floatation tank, dissolved air system, dissolved air return pipeline, dissolved air water release device, scraping device (combined, driving and chain plate according to user needs) and electric control cabinet. In the water supply and drainage treatment process, solid and liquid separation technology and machine are one of the key projects. Air flotation is one of the most effective methods for the removal of tiny suspended particles with a specific gravity close to that of water.
Usage
•Municipal & Domestic
•Tannery•Paper & Pulp•Dyeing & Printing
•Food & Beverage•Dairy•Agricultural•Slaughter & Farming
•Pharmaceutical & Petrochemical
Working principle:
Air-floating separation technology means that air and water are dissolved in water under a certain working pressure, and the air is dissolved in a state of saturation. Then, the formed pressure-dissolved water is released by decompression, and a large amount of fine bubbles are generated. It is in full contact with the suspended flocs in the water, so that the suspended flocs in the water adhere to the micro-bubbles, and float to the surface with the bubbles, forming into scum and then scraping it off, thereby purifying the water.
Air floatation mainly acts as a solid-liquid separation (while reducing COD, BOD, chromaticity, etc.). The flocculant PAC or PAM is added to the raw water, and after the effective flocculation reaction (the time, the amount of the flocculant and the flocculation effect must be determined by the experiment), the raw water enters the combined air-floating contact zone. In this zone, the micro-bubbles in the dissolved air and the flocs in the raw water adhere to each other and enter the separation zone together. Under the action of the buoyancy of the bubbles, the flocs rise together with the bubbles to the liquid surface to form into scum. The scum is scraped by the scraper to the sludge zone. The lower layer of clean water flows through the collecting pipe to the clear water pool. Some of the water is re-circulated for use in the dissolved air system and the other part is discharged.
Advantages:
Easy, smooth and reliable operation
High scraping efficiency
Low power consumption
Simplify and optimize treatment process
Process control
Clients visit
Models and specification
About us
Top Machinery, founded in 2002, specialized manufacture wastewater treatment equipment and sludge dewatering machine, like screw type sludge dewatering machine, decanter centrifuge, brushing/scraping self-cleaning filter, automatic back-flushing filter, Bernoulli filter, electrocoagulation, inward/outward water micro filter, bar screen, etc. With our consistent effort, high quality, competitive price and good after-service, our machines are supplied to more than 30 countries with very good feedback.
