| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Certification: | ISO9001:2015 |
| Minimum Order Quantity: | 1pc |
| Price: | $5,000.00/sets >=1 sets |
| Packaging Details: | Plastic streching film or wooden-cases package |
| Supply Ability: | 80 Set/Sets per Month |
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location: | Canada, Viet Nam, Brazil, Peru, Indonesia, Pakistan, India, Russia, Thailand, Argentina, Chile, Bangladesh, Australia | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2022 |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Gear, Bearing, Motor |
| Material: | Film Packing, SUS304/316/316L | Weight: | 100 |
| Warranty: | 1 Year | Productivity: | 50000L/Hour |
| Weight (KG): | 100 Kg | Product Name: | Rotary Drum Filter |
| Use: | Water Treatment | Function: | Solid-liquid Separation |
| Accuracy: | 50 Micron Above | OEM: | Available |
| Other Name: | Drum Screen | Technology: | Johson Screen |
| MOQ: | 1 Unit | Port: | Shanghai |

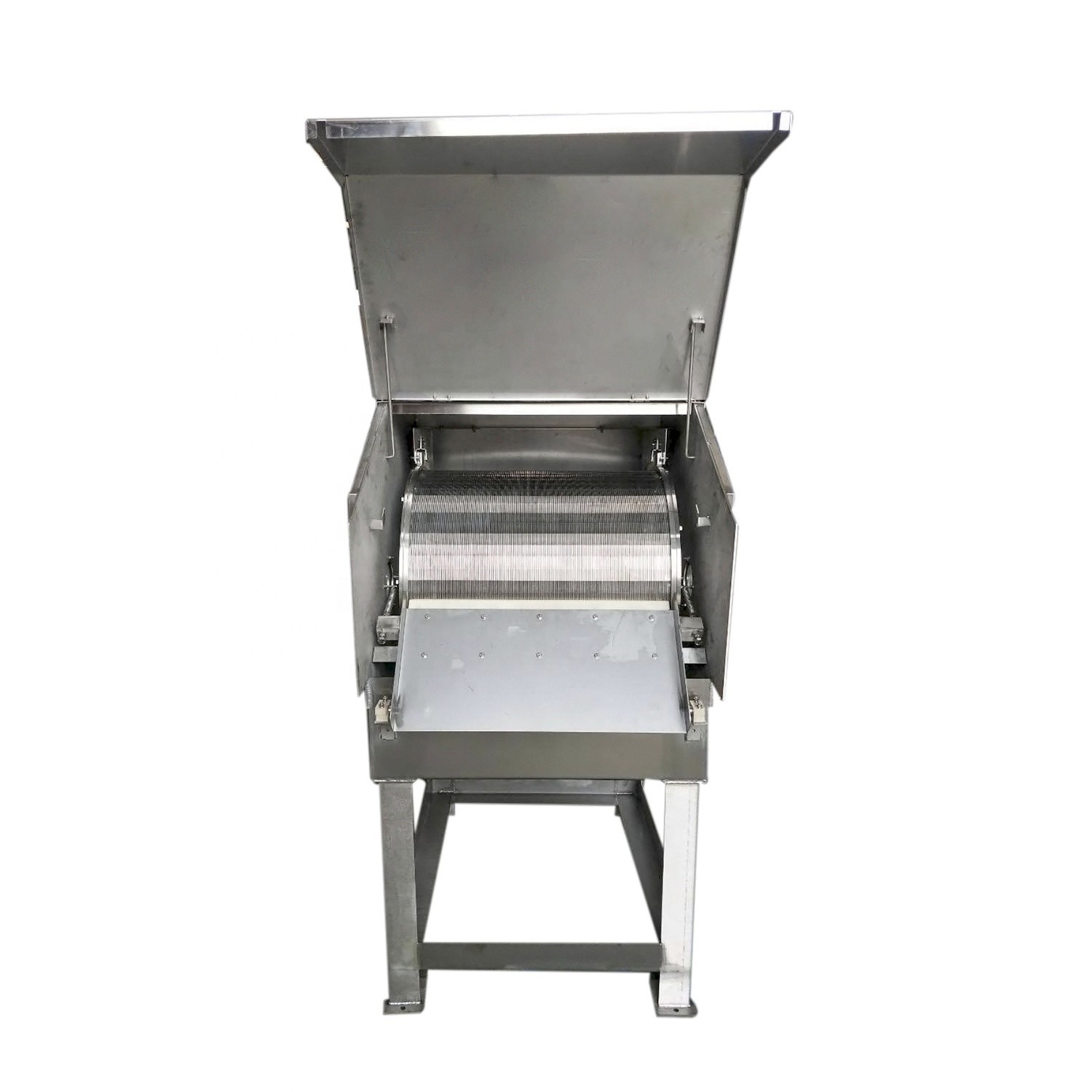

Sewage Treatment Inward Water Drum Filter
The device can remove tiny particles over diameter of 0.25 mm in the wastewater. It’s widely used in papermaking, tanning, slaughtering, wine and food, chemical fiber and textile etc. wastewater treatment fields.
The wastewater flows through the water inlet of the equipment by gravity/pump and enters into the water storage tank of the equipment. When the water level exceeds the top position of the partition plate of the water storage tank, the wastewater will flow through the drum screen and be filtered through the drum screen. During the filtration process, the drum is driven by the motor and rotates 360 °on the circumference.

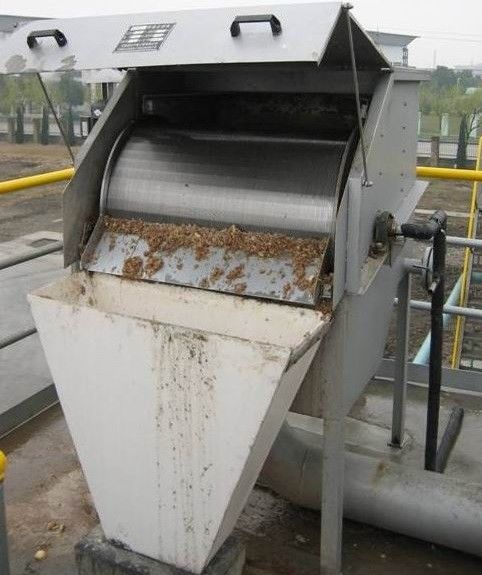

The particles (impurities) larger than the gap of the drum screen are blocked by the drum and attached to the surface of the drum, and removed by the brush and scraping board on the other side of the drum.
The filtered water enters into the drum body through the gap of the drum screen, and discharges outward at the water outlet of the water tank at the bottom of the drum, which also cleans the drum.
Backwashing: set the cleaning time and stop time by the time relay, such as setting the cleaning time for 1 minute and stopping for 8 hours, and adjust the cleaning time and stop time according to the blockage of the drum; when cleaning, the solenoid valve is opened, the water enters the backwashing pipe, and the drum is cleaned from inside to outside by the spray nozzles.
1. The equipment are all made of stainless steel, corrosion resistance, compact structure, cover an area of an area small, easy installation, can be fixed directly with expansion bolts, and not need to do groove. Influent and effluent can be piped.
2.The gate is inverted trapezoidal section, making the slag is not easy to jams mesh filters.

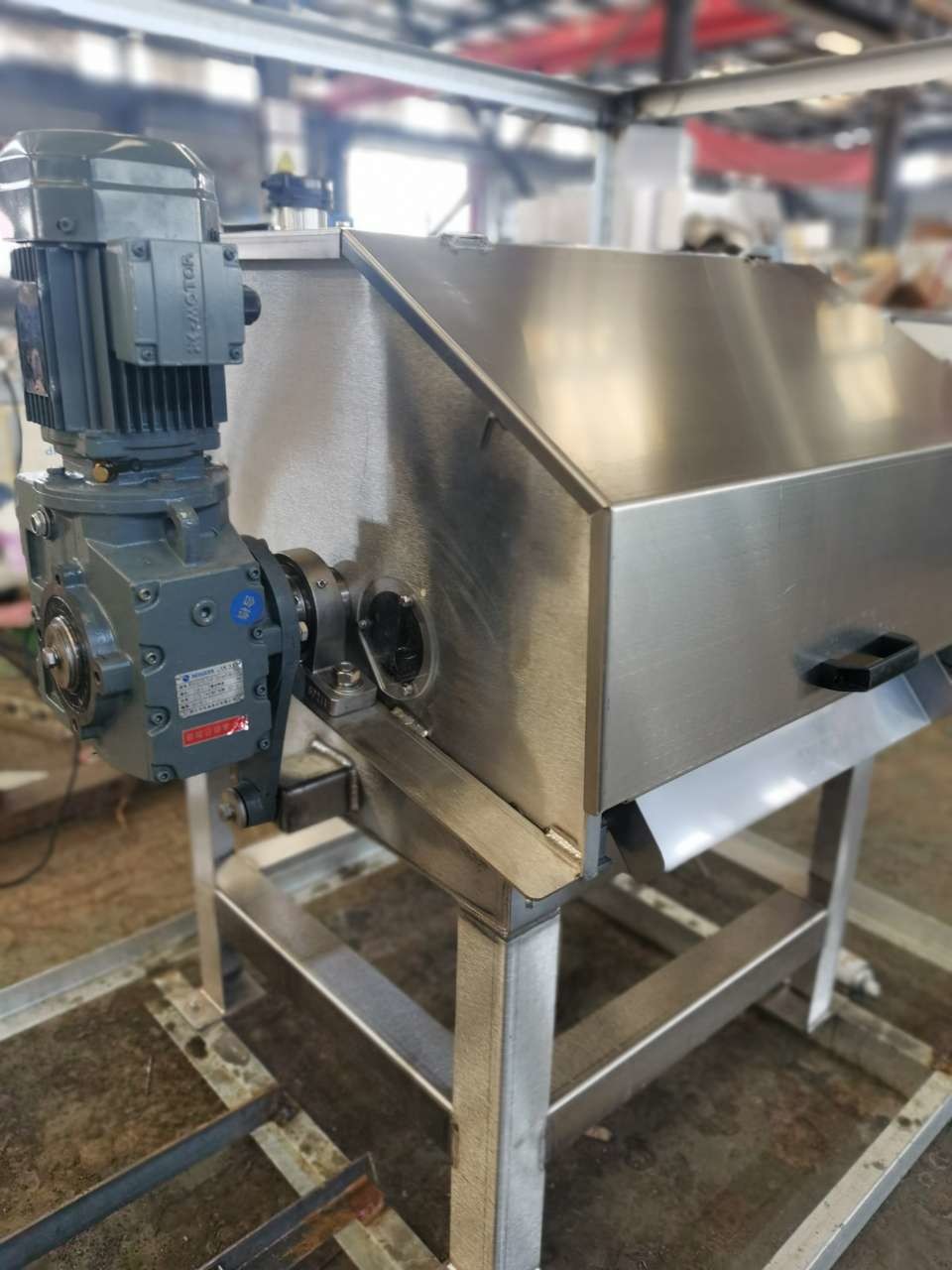

3.It adopts variable speed motor control to keep it in the best working condition according to the inflow water flow.
4.The special rinsing device can brush a very small amount of impurities stuck on the surface of the grid. After the secondary rinsing, the mesh cylinder can achieve the best clearing effect. At the same time, a flushing device is set to flush the dirt attached to the mesh.
| Model (TPI) | 350x600 | 610x610 | 610x1220 | 610x1830 | 800x1830 | |||
| Drum diameter(mm) | 350 | 610 | 610 | 610 | 800 | |||
| Drum length(mm) | 600 | 610 | 1220 | 1830 | 1830 | |||
| Motor power(kw) | 0.25 | 0.55 | 0.75 | 0.75 | 1.1 | |||
| Rotating speed | 4-20r/min | |||||||
| Flowrate (m3/h)
| Slot (mm) | 0.25 | 8 | 33 | 65 | 100 | 175 | |
| 0.5 | 15 | 60 | 120 | 180 | 315 | |||
| 0.75 | 20 | 81 | 162 | 243 | 436 | |||
| 1 | 25 | 100 | 200 | 306 | 535 | |||
| 1.5 | 32 | 130 | 260 | 397 | 695 | |||
| 2.5 | 42 | 170 | 340 | 520 | 912 | |||
*Above parameters only for reference, customized available for detailed requirements
Q: Where is your factory?
A:Chengdu city,Sichuan province, China
Q:Can you accept OEM?
A:Yes.We could do OEM for you.
Q: Do you have certification?
A: Yes. we have ISO / CE certificate and certificate of patent
Q: How about the delivery tme?
A: Usually 15~20 days after prepayment is confirmed.
Q:Do you have a design team?
A:Yes,we have.Providing outline drawing,electric drawing and others.
Q. :What is your payment?
A: T/T,T/C,Western Union,Paypal.
